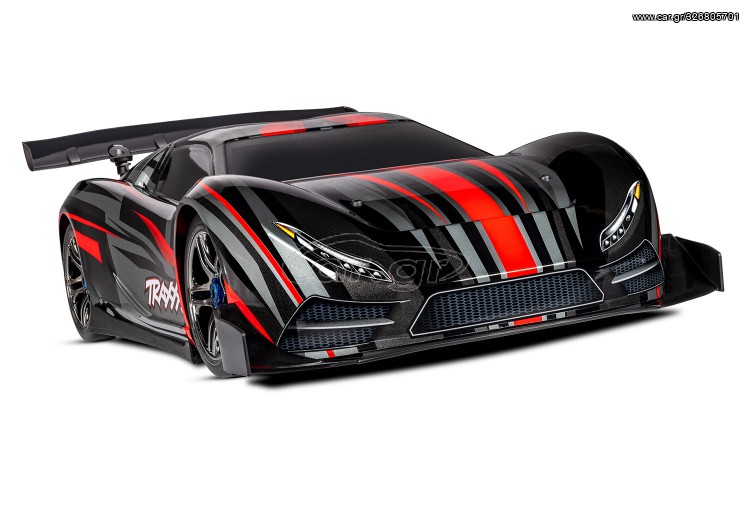

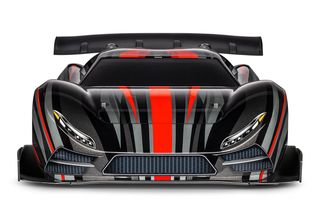

Traxxas XO-1 RED-X - The World’s Fastest Ready-to-Race® RC Supercar is Better Than Ever
XO-1® smashed the world's expectations for RC speed when it was released. Now it's back with a host of updates to make it more accessible than ever. The same 6s Big Block muscle powers it to 100 mph and beyond, while a larger wing and splitter combine with a new rear body vent to keep it planted for total control.
New XO-1 Features:
Increased downforce and Traxxas Stability Management® (TSM) make it easier than ever to experience the full power and speed of XO-1.

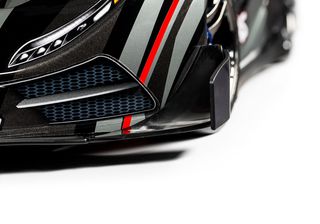

High-Downforce Canards

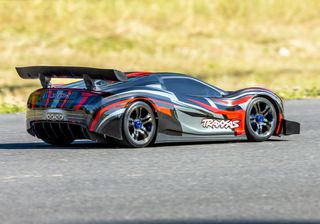

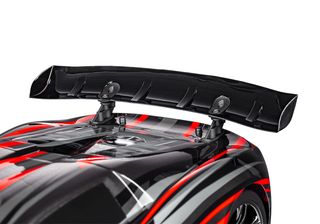

Updated Rear Wing

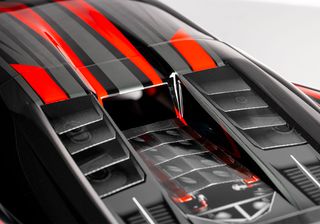

Rear Body Vent

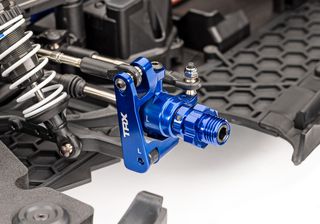

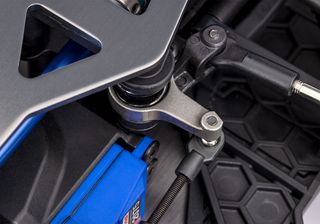

Steel Steering Arm
Enhanced Body Control

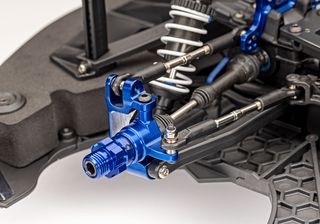

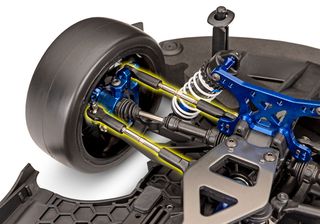

HD Suspension Arms
From a dead stop, 60mph flashes by in 2.3 seconds. Keep the throttle pegged and you’ll smash the 100mph barrier in 4.92 seconds. Simply put, XO-1 is the fastest and most outrageous Ready-to-Race® RC car ever created. New aero improvements make XO-1 even easier to drive at the limit and more fun than ever before. If you’re looking for the most extreme RC thrill ride ever to hit the pavement, look no further than Traxxas, The Fastest Name in Radio Control®.
XO-1 Vehicle Specs:
Length: 686mm
Front Track: 300mm
Rear Track: 300mm
Ground Clearance: 15mm
Weight: 3.9 kg (w/o batteries)
Width (overall): 329mm
Height (overall): 127.5mm
Wheelbase: 404mm
Shock Length: 83mm front, 86mm rear
Front Tires (pre-glued): Belted slick 109 x 43mm
Rear Tires (pre-glued): Belted slick 109 x 51mm
Wheels (front & rear): 84mm Split-Spoke™ (black-chrome) with 17mm splined hex
Speed Control: Castle Mamba Monster Extreme forward/reverse/brake
Motor (electric): Traxxas Big Block Brushless (1650 kV)
Transmission: Single-speed with Cush Drive™
Overall Drive Ratio: 9.36 (stock, out-of-box)
Differential Type: Sealed hardened steel bevel
Gear Pitch: Module 1.0

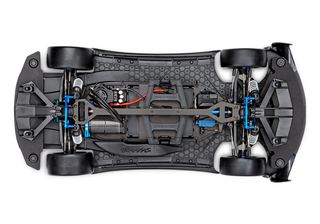

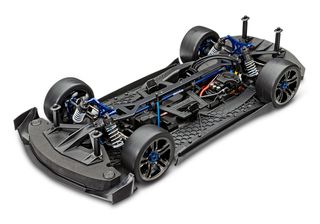

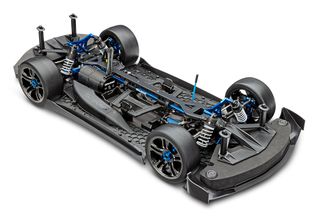

Chassis Structure/Material: 3mm plate, dual plane, 6061-T6 aluminum
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Dual-Bellcrank with steel arm
Radio System: TQi™ 2.4GHz Radio System with Traxxas Link Wireless Module
Receiver: TSM® Receiver (#6533)
Servo: #2075 High Torque Waterproof
Top Speed: 50+mph out of box; 100+mph with high-speed wing, speed gear, and Traxxas Link app unlock
Skill Level: 10
Battery Tray Dimensions: 155 x 50 x 29mm (adjustable height and length)
Required Batteries & Charger: Two Traxxas iD® Power Cell LiPo batteries (LiPo, 3-Cell 5,000 mAh), 4 "AA" (transmitter), Traxxas iD® LiPo Battery Charger
Traxxas Big Block Brushless (1650 kV):
Type: 1650 kV Sensorless Brushless
Weight: 665g
Can Length: 89mm overall length, 85mm can length
Diameter: 46mm
Shaft Diameter: 5mm
Connector Type: Traxxas 6.5mm Bullet
Castle Creations Mamba Monster Extreme ESC:
Input voltage (cells): 6s LiPo (max: 25.2 volts)
On-Resistance (@Trans)–FWD/REV: 0.0003 Ohms per phase
Reverse Delay: Yes, with lockout
Low Voltage Detection (LVD): Yes, programmable
Specs per Castle Creation’s published specifications at the time of manufacture.
Specifications subject to change.
What’s In The Box:
XO-1 Supercar with Mamba Monster Extreme ESC and Traxxas Big Block motor
TQi™ 2.4GHz radio system with installed Traxxas Link wireless module
Quick Start Guide
Optional 34-tooth top speed gear
What You’ll Need:
Batteries and Charger: XO-1 requires dual 2s or dual 3s LiPo batteries. See full list of compatible batteries. Use the Dual 3s Completer Pack (#2990) for maximum performance and convenience.
Mobile Device Running Free Traxxas Link App: Get real-time telemetry on your mobile device with the app and unlock top-speed mode for 100+mph performance. See Traxxas Link requirements here.
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
