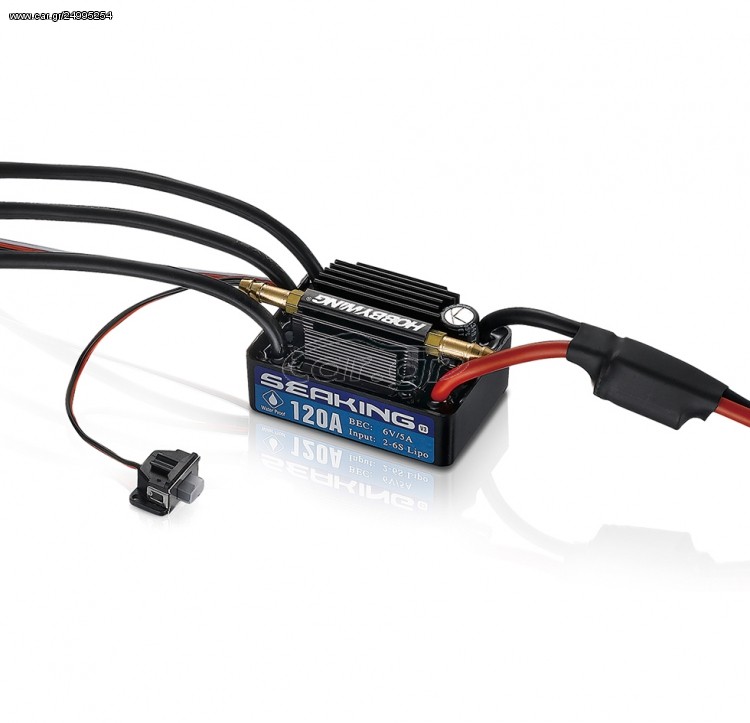

Specifications
◾Brushed/Brushless: BL
◾Waterproof: Yes
◾Cont./Peak Current: 120A/720A
◾Input: 2-6S LiPo, 6-18 Cells NiMH
◾BEC Output: Linear Mode:6V/5A
Wires & Connectors
◾Input Wires: 12AWG 200mm
◾Output Wires: 12AWG 150mm
◾Input Connectors: No
◾Output Connectors: No
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
◾Transmitter: Supported
◾LED Program Box: Supported
◾LCD Program Box: Not Supported
◾WiFi Module: Not Supported
◾Program Port: Separate Program Port
Firmware
◾Firmware Upgrade: Not Supported
Size & Weight
◾Size: 68.5 x 39.4 x 32mm
◾I.D./O.D. of the Water Cooling Pipe: Ф3.0/5.4 mm
◾Weight: 150g
Applications
◾Boat Length <110cm
